MB8719 MB8734 RCI8719 PLL Synthesizer

Overview

This PLL-circuit use a 6 bit (MB8734 and RCI8719) or 7 bit (MB8719) BCD binary programmable divide-by-N counter.

Down-converting of the frequency to the divider

This PLL Circuit use a Mixer and a X-Tal Oscillator to convert the output frequency f _OUT to the f _IN to the PLL Circuit.
The X-Tal frequency is f _XTAL = f _OUT - f _IN



The output frequency can be changed by changing the mixing-xtal or add a new mixing-xtal to the oscillator.

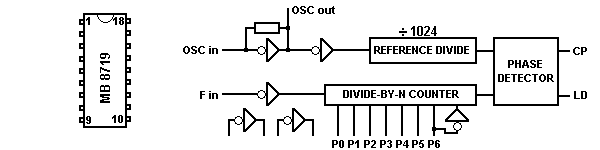

Pin	Name	Description
1	Out	Inverter out
2	In	Inverter in
3	Out	Inverter out
4	In	Inverter in
5	CP	Charge Pump
6	LD	Loop Detect
7	OSC in	Oscillator input
8	OSC out	Oscillator output
9	VDD	Positive Power Supply
10	P6	Programmable inputs (Binary) (Only MB8719)
11	P5	Programmable inputs (Binary)
12	P4	Programmable inputs (Binary)
13	P3	Programmable inputs (Binary)
14	P2	Programmable inputs (Binary)
15	P1	Programmable inputs (Binary)
16	P0	Programmable inputs (Binary)
17	F in	Frequency input
18	VSS	GND Ground

TRUTH TABLE

P6	P5	P4	P3	P2	P1	P0	Divide by N
0	0	0	0	0	0	0	0
0	0	0	0	0	0	1	1
0	0	0	0	0	1	0	2
0	0	0	0	0	1	1	3
0	0	0	0	1	0	0	4
-	-	-	-	-	-	-	-
-	-	-	-	-	-	-	-
