2990 ac power board wiring

Post by zinger827 »

Radio Make and Model: RCI 2990
PCB Number:
PLL Number:
Test gear available:

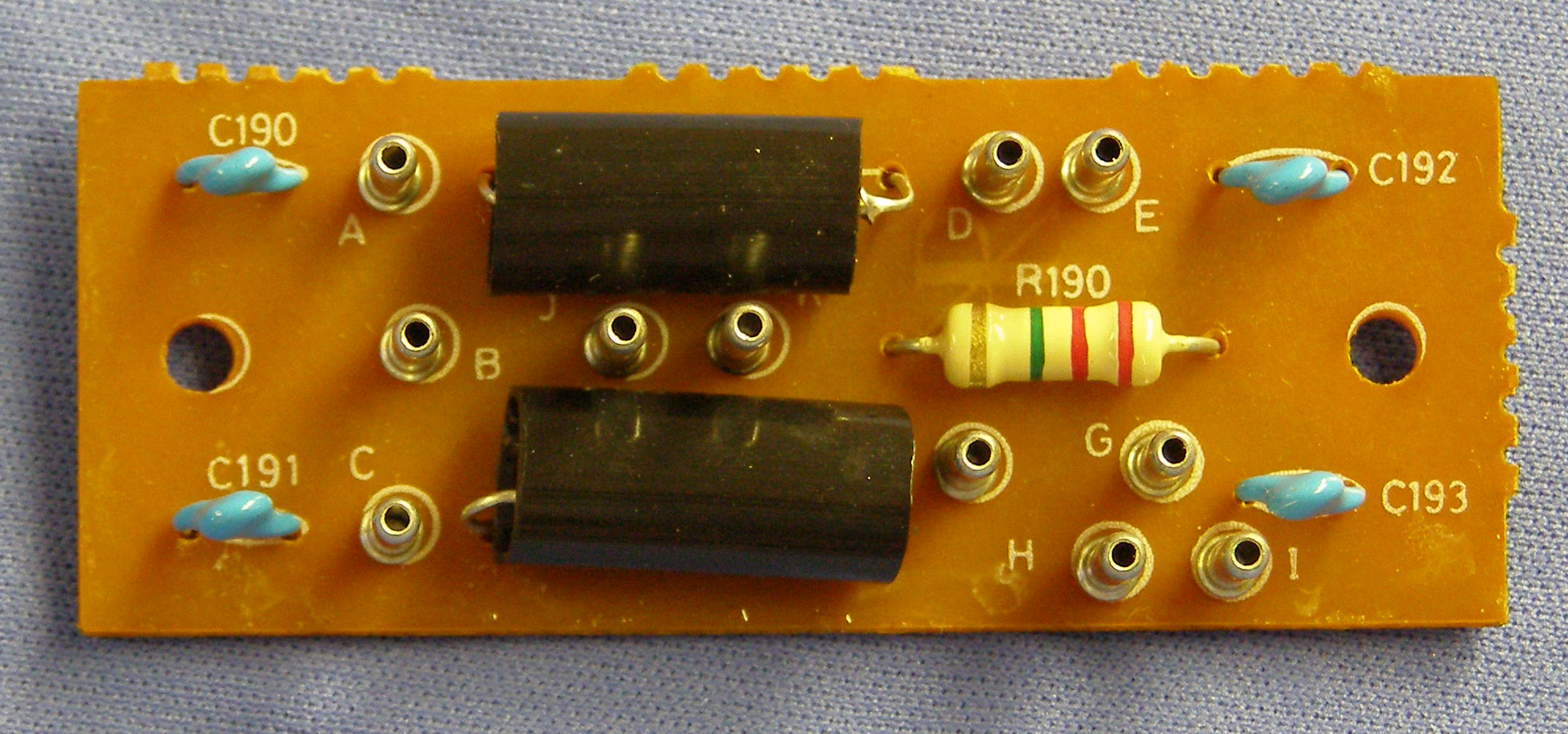

Hi I just bought a 2990 with blown out ac board. I replaced it with a new one but need to know what wires go where on it :) I have the black power cord wire on C the green (ground) power cord wire on B and the fuse wire on A and the white power wire on the fuse block. I need to know where the other wires connect on the other side of board. I have 2 red from power switch and 4 wires coming out of transformer. Thanks.

What is working:

What has been tried:

Did it suddenly happen ?:
Anything else that may be of help?:
(577.23 KiB) Downloaded 73 times
